Alkyd Resin Plants
Alkyd Resin Plants Details
Producing alkyd resin at industrial scale requires controlled reaction conditions, reliable heat management and coordinated handling of vapours, condensate and finished resin. The Alkyd Resin Plant is engineered around these requirements with a 5000 L continuous reactor, fully automatic operation and SS316 construction. Designed for industrial use, the system supports processing at temperatures up to 250°C while maintaining an integrated production workflow.
Process Architecture Built Around Controlled Resin Production

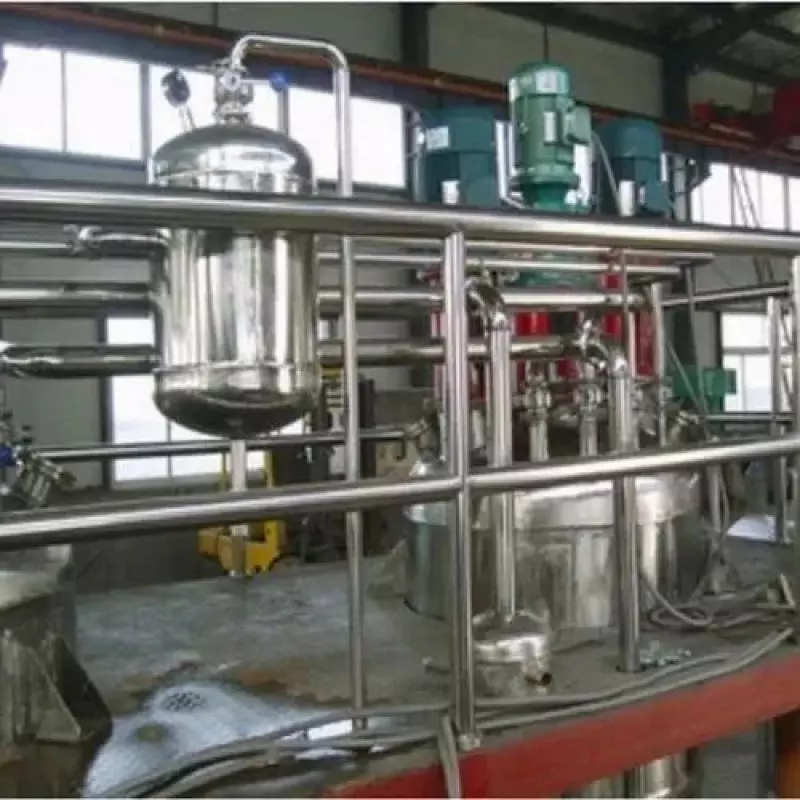

The plant centres on a stainless-steel reactor equipped for controlled reaction and mixing. Supporting process sections can include a packed or fractionating column, condenser and vent condenser for vapour handling, along with a receiver or separator for collecting condensate. A separate thinning tank can be used to blend finished hot resin with solvents to achieve the required viscosity.
Core Technical Specifications
| Plant Type | Alkyd Resin Plant |
| Reactor Type | Continuous Reactor |
| Capacity | 5000 L |
| Resin Type | Alkyd |
| Automation Grade | Fully Automatic |
| Material of Construction | Stainless Steel 316 |
| Power Source | Electric |
| Voltage | 440 V |
| Maximum Temperature | 250°C |
| Power Consumption | 40 HP |
| Grade | Industrial |
Integrated Sections for a Complete Process Flow
- SS316 reaction vessel for industrial resin processing.
- Heating and cooling arrangement using jacket or limpet-coil configurations as required.
- Agitator system for controlled mixing inside the reactor.
- Packed or fractionating column for handling volatile components.
- Condenser and vent condenser for vapour condensation and recovery.
- Receiver or separator tank for condensate collection.
- Thinning tank with agitation for viscosity adjustment.
- Heating, vacuum and supporting utility systems for process operation.
Designed for Industrial Resin Processing in Ahmedabad
For chemical and resin-processing facilities in Ahmedabad and across Gujarat, an integrated plant arrangement can simplify coordination between reaction, condensation, separation, thinning and supporting utilities. The fully automatic configuration is intended to provide systematic process control, while the SS316 construction offers a robust material platform for industrial service.
Process requirements can vary according to formulation, batch strategy, viscosity targets and operating conditions. Contact us in Ahmedabad to discuss your alkyd resin production requirements, plant configuration, utilities and technical specifications for the intended installation.
Related Products
Pulverizer Machine
Grinding work can look simple from outside, but the right machine makes a clear difference when the same process has to ... Continue
Flour Mill
Flour milling requirements can vary from a small processing setup to regular commercial work. We manufacture and supply ... Continue
Cattle Feed Making Machine
Efficient feed preparation starts with a machine that can turn suitable feed ingredients into a more manageable and cons... Continue
Masala Pulveriser Machine
Uniform spice texture can make a noticeable difference in the preparation and presentation of masala products. Our masal... Continue
Food Processing Machine
Efficient food preparation often depends on having the right processing equipment for each stage of production. Our food... Continue
Sugarcane Juice Machine
Fresh sugarcane juice is a popular refreshment, but serving it efficiently during busy hours depends heavily on extracti... Continue
Ss Pulverizer
For food-processing work where cleanliness, controlled grinding and practical batch output matter, stainless-steel const... Continue
Mini Rice Mill
Rice processing does not always require a large industrial setup. For businesses and users looking for a more compact so... Continue
Alkyd Resin Manufacturing Plant
Consistent alkyd resin production calls for controlled heating, effective agitation and careful management of condensate... Continue
1 Tpd Alkyd Resin Plant
Alkyd resin production at a production-scale level requires coordinated charging, heating, condensation, testing, diluti... Continue
Pasta Making Machine
Uniform pasta production becomes much easier when shaping and processing are handled through dedicated machinery rather ... Continue
Masala Making Machine
Turning whole spices and selected ingredients into a consistent powder requires more than simple crushing; the grinding ... Continue
Cattle Feed Plant
Efficient cattle-feed production starts with consistent preparation of feed materials and a plant layout suited to the r... Continue
Chilli Grinding Machine
Fine chilli powder begins with the right grinding action: the dried material must be reduced efficiently without making ... Continue
Pulverizer With Cyclone
Consistent particle size and controlled material handling can make a major difference in commercial grinding operations.... Continue
2 In 1 Ss Pulverizer 2hp
When one compact machine needs to handle everyday grinding requirements without taking up unnecessary production space, ... Continue
3 Hp Ss Body Pulverizer
Fine grinding becomes far more practical when the machine combines hygienic construction, controlled feeding and dependa... Continue
Pasta Making Machines
Turning prepared dough into uniform pasta shapes requires controlled forming, dependable feeding and repeatable processi... Continue
2 In 1 Pulverizer Ss Body 3hp
When one compact machine can handle different dry-grinding requirements, production becomes easier to organize and space... Continue
Dal Mill Machine
Efficient dal processing begins with dependable separation, controlled handling and a machine that can support consisten... Continue
Sakkar Para Machines
Consistent shape and uniform dough thickness can make a noticeable difference when producing Sakkar Para in commercial q... Continue
Laddu Making Machine
When laddu production moves from occasional preparation to regular commercial volumes, maintaining the same shape, size ... Continue
Oil Expellers
Oil extraction becomes far more manageable when seed processing is continuous, controlled and matched to the required pr... Continue
Manual Papad Machines
Uniform papad production becomes much easier when every dough portion can be flattened with controlled pressure and repe... Continue
Pani Puri Machines
High-volume pani puri production demands more than speed alone; uniform puri size, repeatable dough handling and an orga... Continue
HEAVY-DUTY DOUBLE CHAMBER PULLVERISER MACHINEs
When grinding demand rises, the machine needs to handle sustained material flow without compromising the fineness expect... Continue
Flour Mill (Aata Chakki)
Fresh flour production starts with controlled grinding, and the right chakki can make a significant difference to daily ... Continue
Mini Cold Press Oil Mill Machines
For small-scale oil production, a compact machine can make it easier to bring seed-to-oil processing into a controlled a... Continue
Papad Making Machines
Uniformity is one of the most important parts of commercial papad production, particularly when repeated batches need to... Continue
Wet Grinder
Consistent batter preparation can make a major difference in busy food operations where repeated grinding is part of the... Continue
Vaccum Packing Machiness
Packaging performance often begins with how effectively air is removed before sealing. Our Vacuum Packing Machine is des... Continue
BLOWER TYPE PULVERIZER MACHINE
Efficient grinding is not only about reducing grain size; controlled material movement after pulverization also matters ... Continue
Cold Press Oil Making Machine
When oil quality is closely connected with the way seeds are processed, controlled mechanical pressing becomes an import... Continue
Namkeen Making Machine
Turning prepared dough into consistently shaped namkeen requires controlled extrusion, dependable heating and an efficie... Continue
Farsan Making Machine
For a farsan business, production speed needs to work alongside consistent shaping and manageable operation. Our Farsan ... Continue
Sugar Grinders
Fine sugar powder can be an important ingredient in confectionery, bakery preparations and other food-processing applica... Continue
Rice Mill Machinery
Efficient rice processing begins with a well-planned milling system that can handle the journey from incoming paddy to p... Continue
16 Inch Atta Chakki Machine
Freshly milled flour starts with the right grinding surface, suitable motor capacity and controlled processing. Our 16 I... Continue
Stainless Steel Flour Mill Domestic Machine
Bringing grain milling closer to everyday food preparation can make fresh flour a practical part of a household routine.... Continue
14 Inch Diamond Stone Atta Chakki
The character of freshly milled flour is closely connected to the grinding surface, and a well-designed stone chakki can... Continue
Stoneless Atta Chakki Machine
Fresh flour preparation becomes more convenient when grinding technology is designed for straightforward operation and c... Continue
Masala Machine
Grinding spices is not simply about reducing whole ingredients into powder; the desired fineness, consistency and proces... Continue
Sevai Machine
Uniform sevai begins with controlled dough extrusion, and that becomes increasingly important when production moves from... Continue
Poultry Feed Machine
Consistent feed preparation is an important part of maintaining an organized poultry operation, and the right machinery ... Continue
Grains Processing Machine
From harvested grains to cleaner, more usable raw material, every processing stage influences the quality and efficiency... Continue
Rice Mills
Every rice-processing operation has its own production scale, grain characteristics and workflow requirements. Our Rice ... Continue
